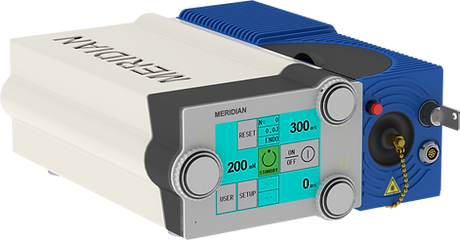

Merilas α532
Award winning, fully featured frequency doubled solid state green laser photocoagulator.
The Merilas α532, a cutting-edge single-spot green laser photocoagulator, is specifically designed for ophthalmological applications.
It plays a crucial role in addressing various retinal conditions, including diabetic retinopathy and age-related macular degeneration.
By emitting a green light at the precise wavelength of 532nm, the laser ensures optimal absorption by retinal tissues, allowing for targeted coagulation of specific tissue areas without adversely affecting surrounding areas.
This state-of-the-art device is instrumental in conducting a range of eye care procedures such as retinal photocoagulation, laser trabeculoplasty, and capsulotomy. Crafted for user-friendliness, precision, and accuracy.
Merilas α532 is suitable for deployment across diverse healthcare environments, from hospitals and clinics to private medical practices.
Merilas α532 Technical Specification
| Device description | Merilas 532 shortpulse |
| Safety Classifications Class 4 | Class 4 |
| Wavelength | 532 nm |
| Power Output | 50 – 2500 mW |
| Pulse Duration | CW (continuous wave, pulsed) 1 – 5000 ms |
| Pulse Interval | 1 – 5000 ms |
| SP-Mode Settings | shortpulse (continuous wave, chopped) shortpulse duration: 0.01 – 9.5 ms shortpulse interval: 0.1 – 9.5 ms |
| Cooling | TEC |
| Aiming Beam | Diode 635 nm, (0-1 mW in 9 steps) |
| Dimensions | 25.0 × 22.0 × 10.5 cm |
| Total Weight | 7.0 kg |
| Power Requirements | 100 – 240 V, 50/60 Hz, 2 A max. |

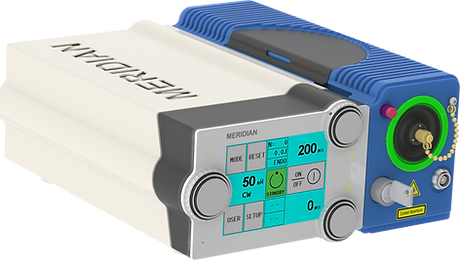

Merilas shortpulse 532
The Merilas 532 shortpulse ophthalmic laser photocoagulator with dual treatment modality: subthreshold or continuous wave delivery mode.

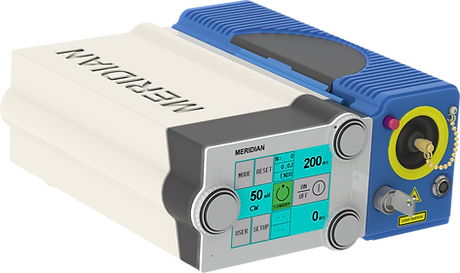

Merilas shortpulse 577
The Merilas 577 shortpulse ophthalmic Yellow Laser Photocoagulator with dual treatment modality: subthreshold or continuous wave delivery mode.
The Merilas 577nm yellow photocoagulators are equipped with sophisticated short-pulse technology that allows for cooling periods between laser pulses, significantly reducing or even preventing tissue damage.
This cutting-edge approach not only lowers the risks associated with treatments but also improves the comfort and safety for patients, effectively avoiding tissue damage and scarring.
Additionally, this device presents a dual mode of operation, offering unparalleled flexibility in treatment approaches. It can be utilized in a subthreshold mode, which employs microsecond pulses for precise control, or in a continuous wave delivery mode, catering to a broad range of treatment needs with its versatility.
Merilas 577 Technical Specification
| Device description | Merilas 577 shortpulse |
| Safety Classifications Class 4 | Class 4 |
| Wavelength | 577 nm |
| Power Output | 50 – 2500 mW |
| Pulse Duration | CW (continuous wave, pulsed) 1 – 5000 ms |
| Pulse Interval | 1 – 5000 ms |
| SP-Mode Settings | shortpulse (continuous wave, chopped) shortpulse duration: 0.01 – 9.5 ms shortpulse interval: 0.1 – 9.5 ms
|
| Cooling | TEC |
| Aiming Beam | Diode 635 nm, (0-1 mW in 9 steps) |
| Dimensions | 25.0 × 22.0 × 10.5 cm |
| Total Weight | 7.0 kg |
| Power Requirements | 100 – 240 V, 50/60 Hz, 2 A max. |
Merilas shortpulse 810
The Merilas 810 stands out as a robust and efficient ophthalmic diode laser photocoagulator, specifically designed for addressing glaucoma and retinal conditions. Its sleek, compact structure belies the power and adaptability it offers, ensuring top-notch performance and reliable outcomes across treatments.
This device boasts a dual treatment approach, giving clinicians the ability to switch between microsecond pulse subthreshold mode and a continuous wave delivery mode. This flexibility allows for customized treatment plans tailored to meet the unique requirements of individual patients, promoting enhanced treatment efficacy.
Merilas 810 Technical Specification
| Device description | Merilas 810 shortpulse |
| Safety Classifications Class 4 | Class 4 |
| Wavelength | Infrared (810 nm) |
| Power Output | 50 – 3000 mW |
| Pulse Duration | CW (continuous wave, chopped) 1 ms – 10 000 ms
|
| Pulse Interval | 1 ms – 10 000 ms |
| SP-Mode Settings | shortpulse (continuous wave, chopped) shortpulse duration: 0.01 – 9.5 ms shortpulse interval: 0.1 – 9.5 ms
|
| Cooling | TEC |
| Aiming Beam | Diode 635 nm, (0-1 mW in 9 steps) |
| Dimensions | 25.0 × 22.0 × 10.5 cm |
| Total Weight | 7.0 kg |
| Power Requirements | 100 – 240 V, 50/60 Hz, 2 A max. |
